Description

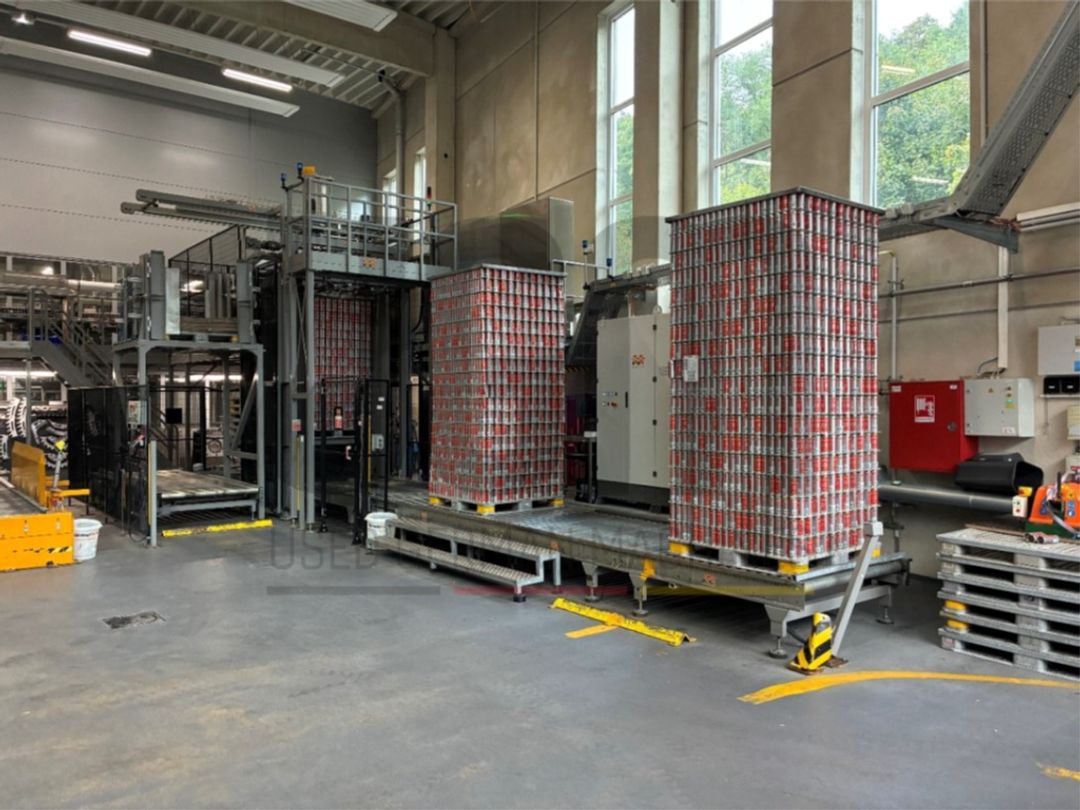

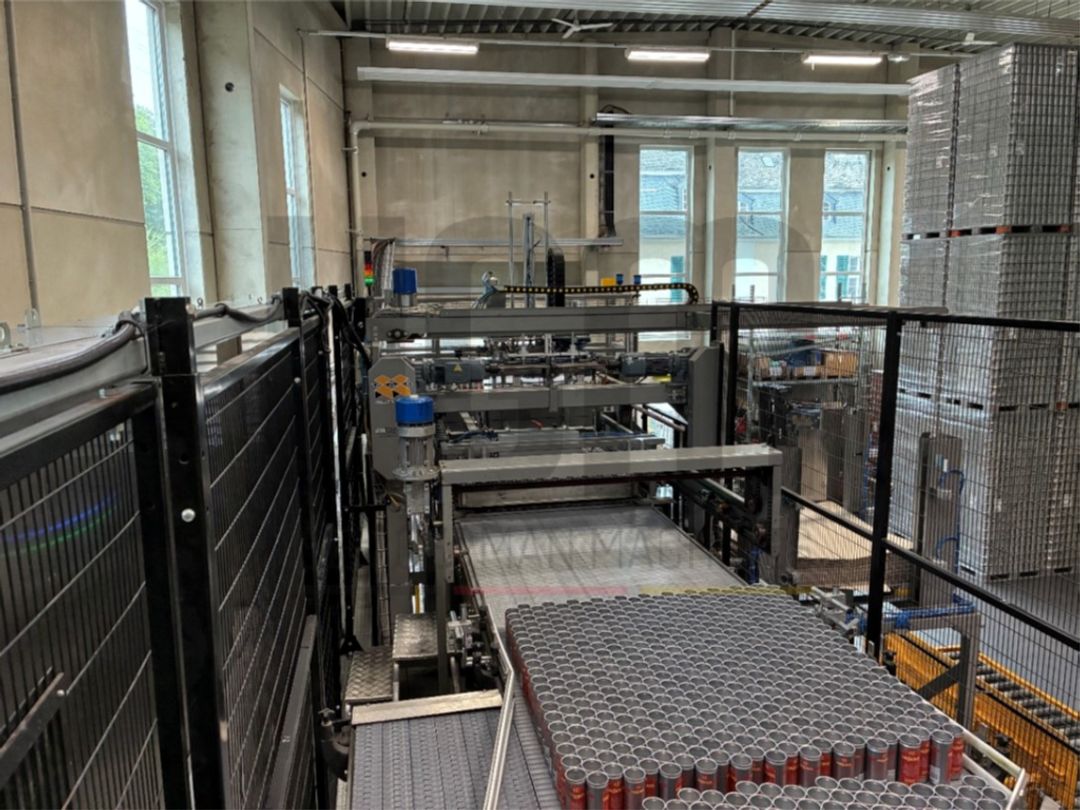

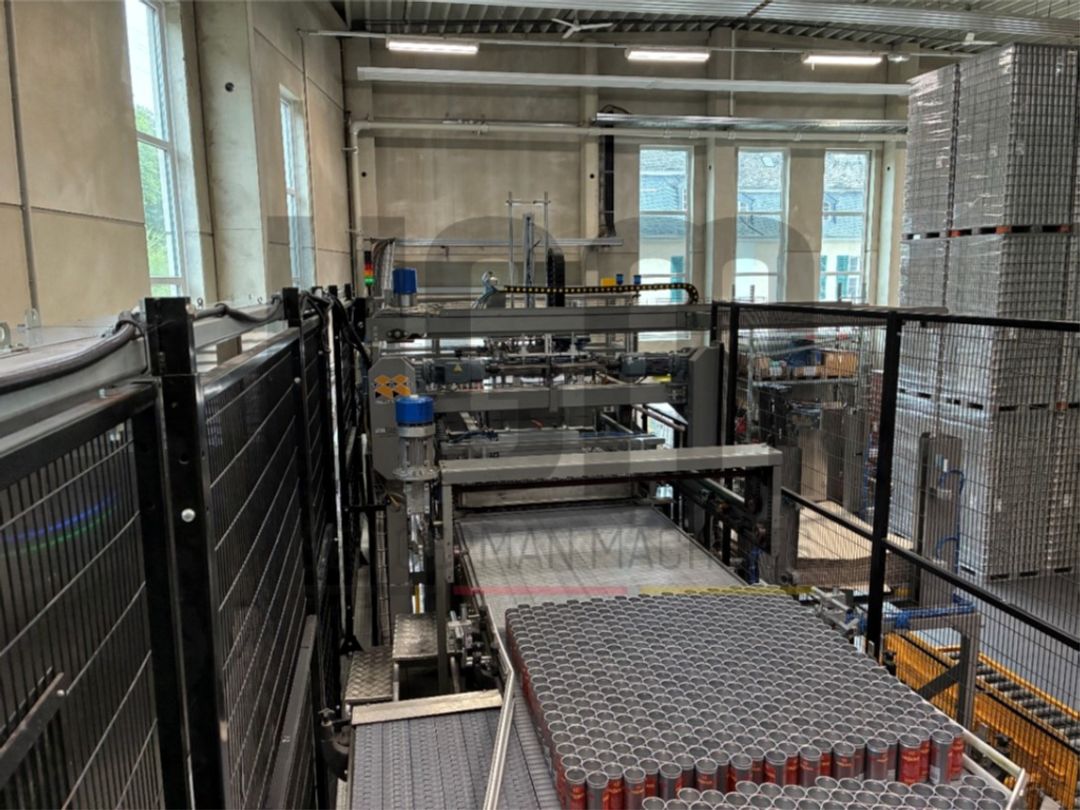

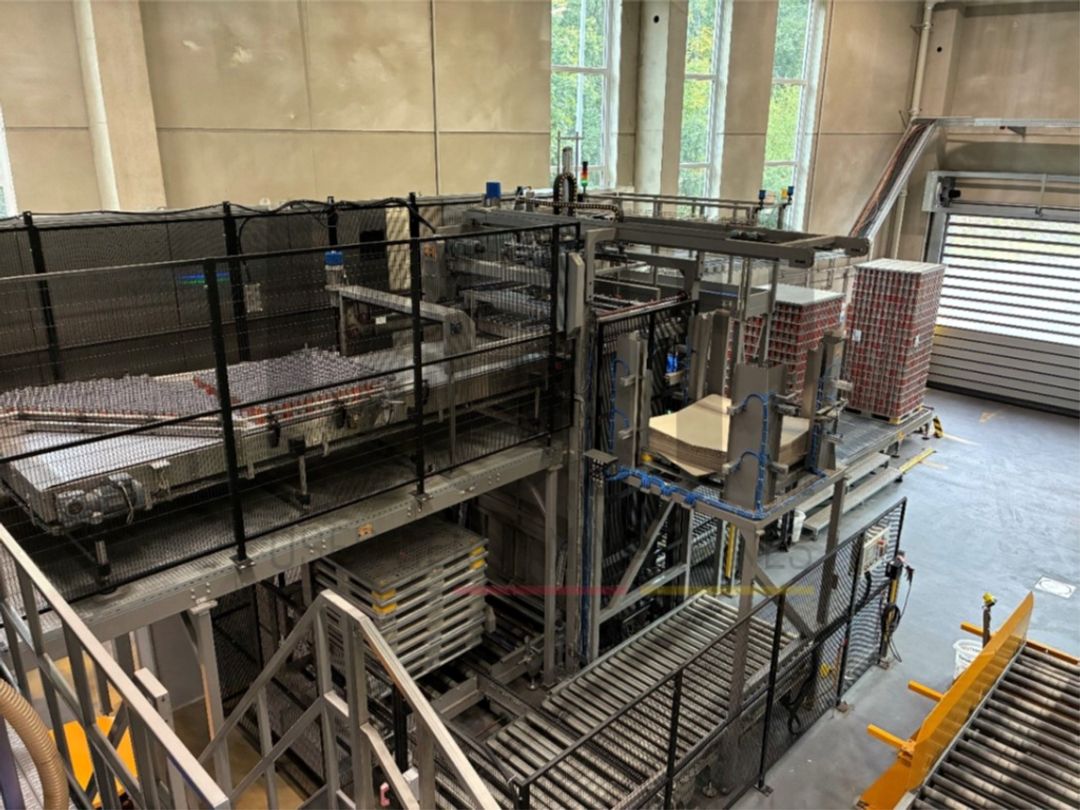

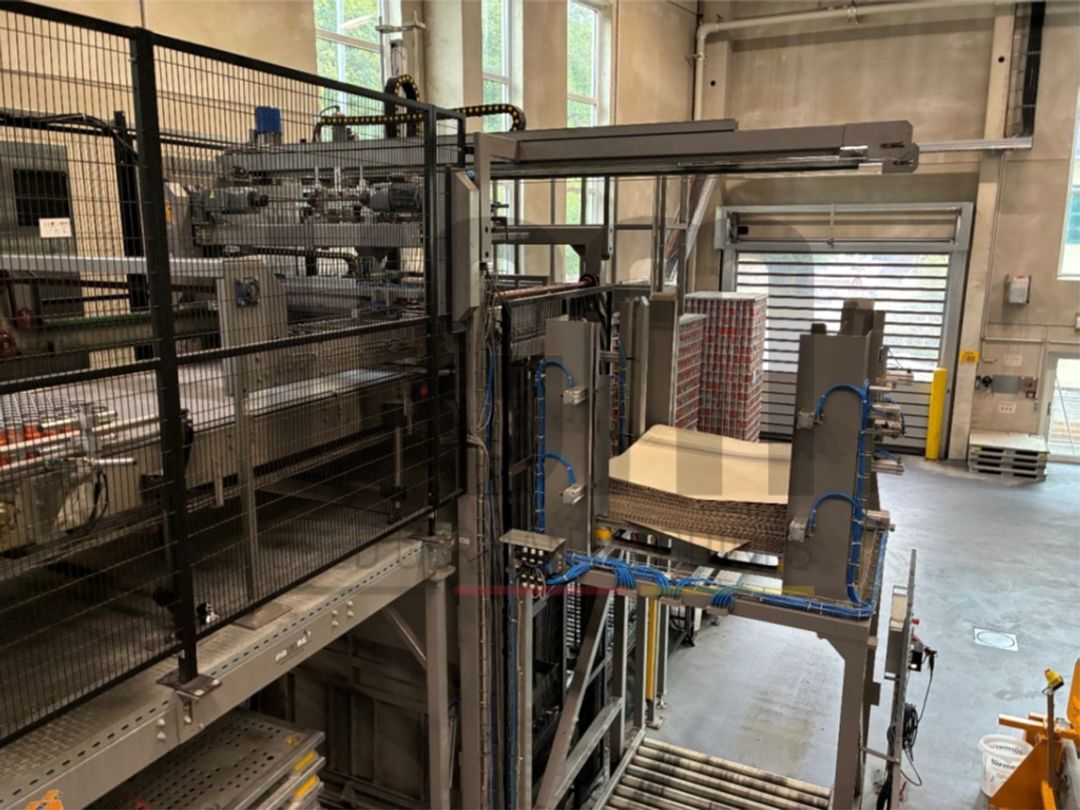

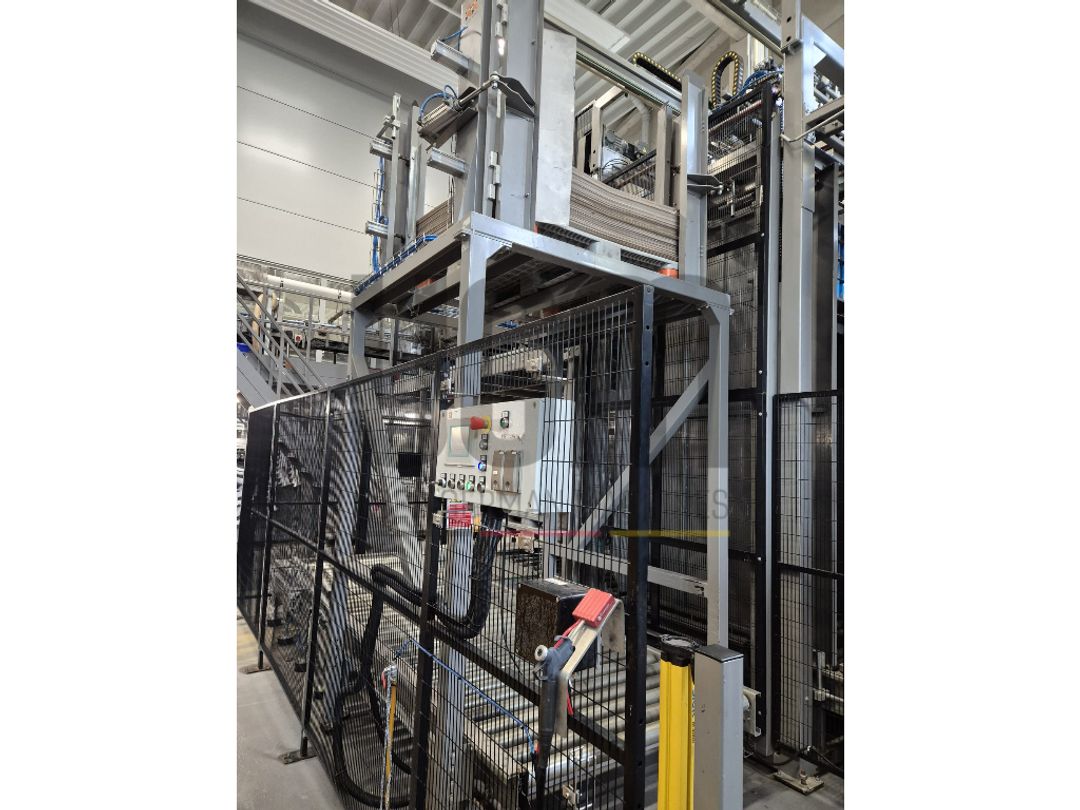

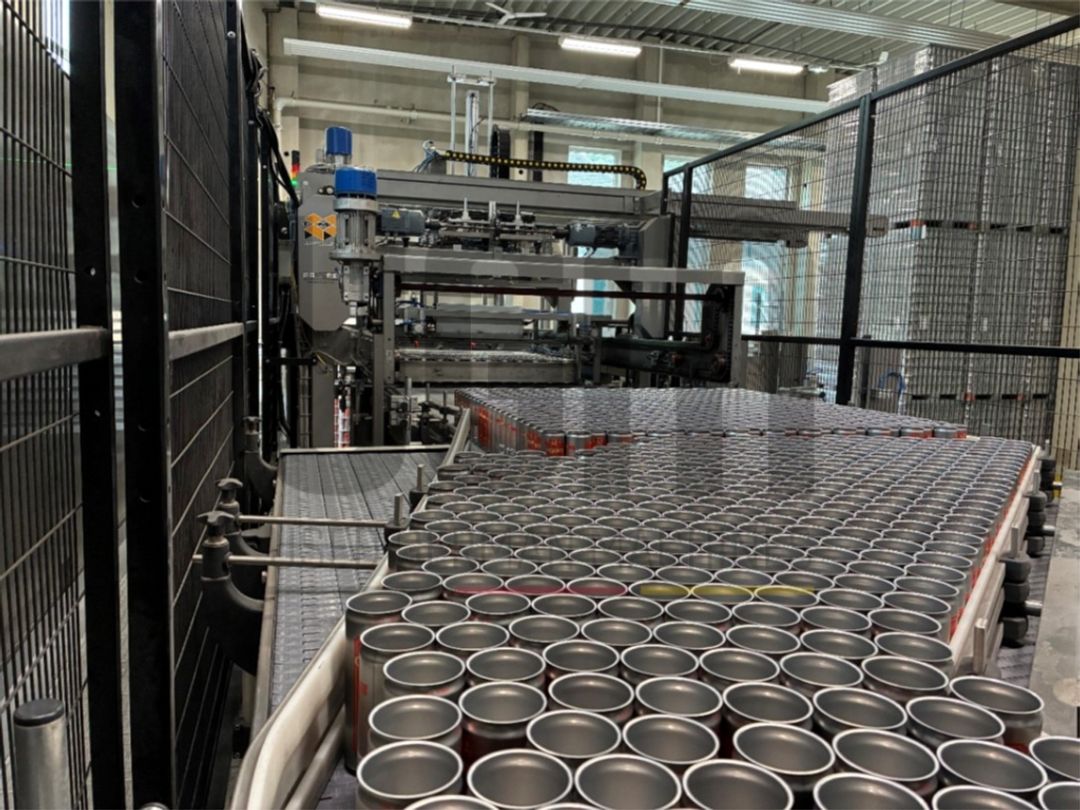

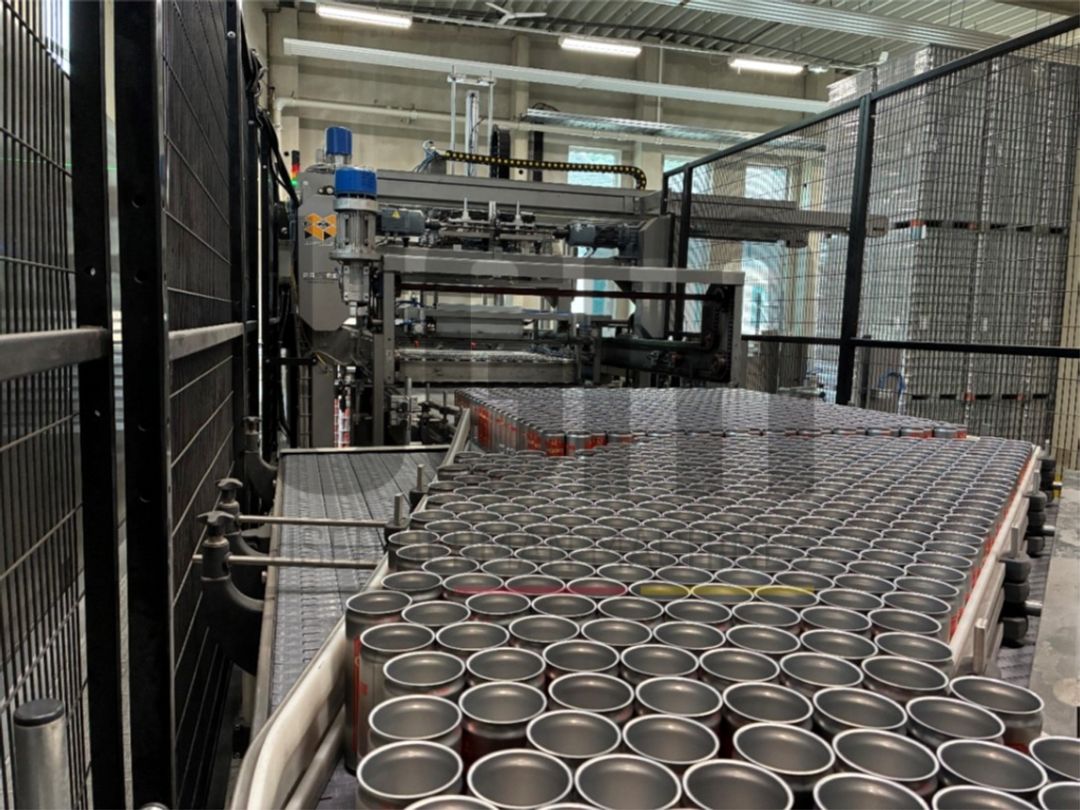

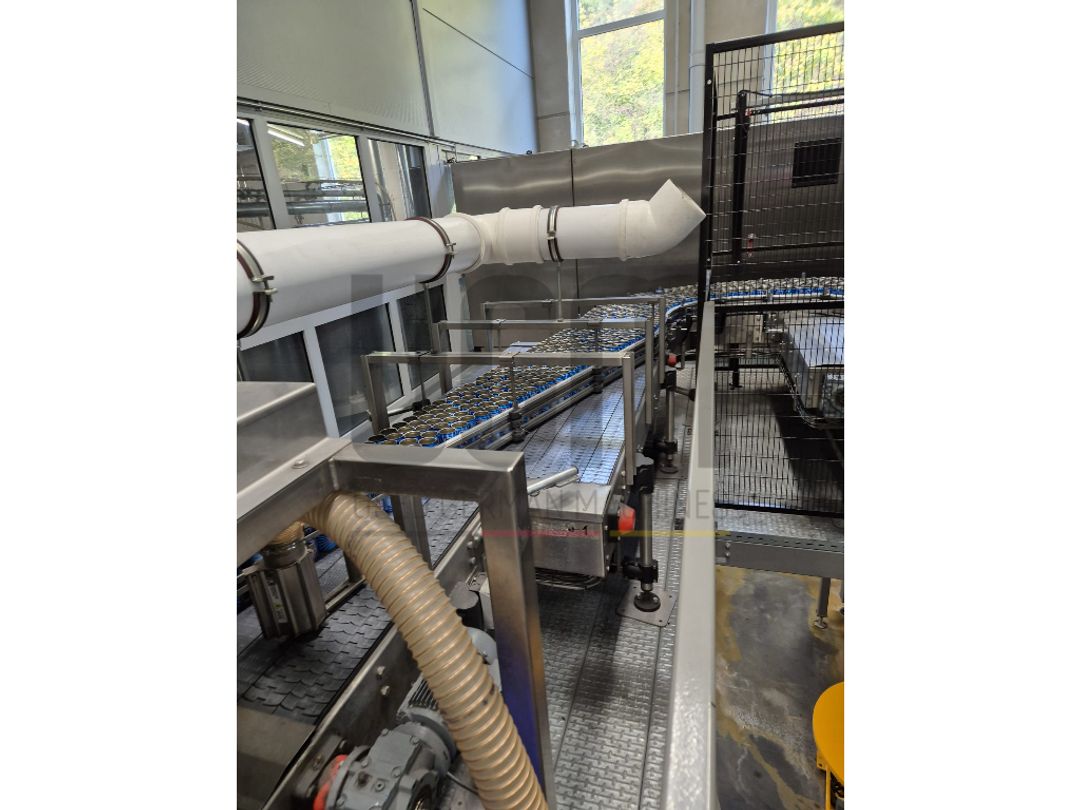

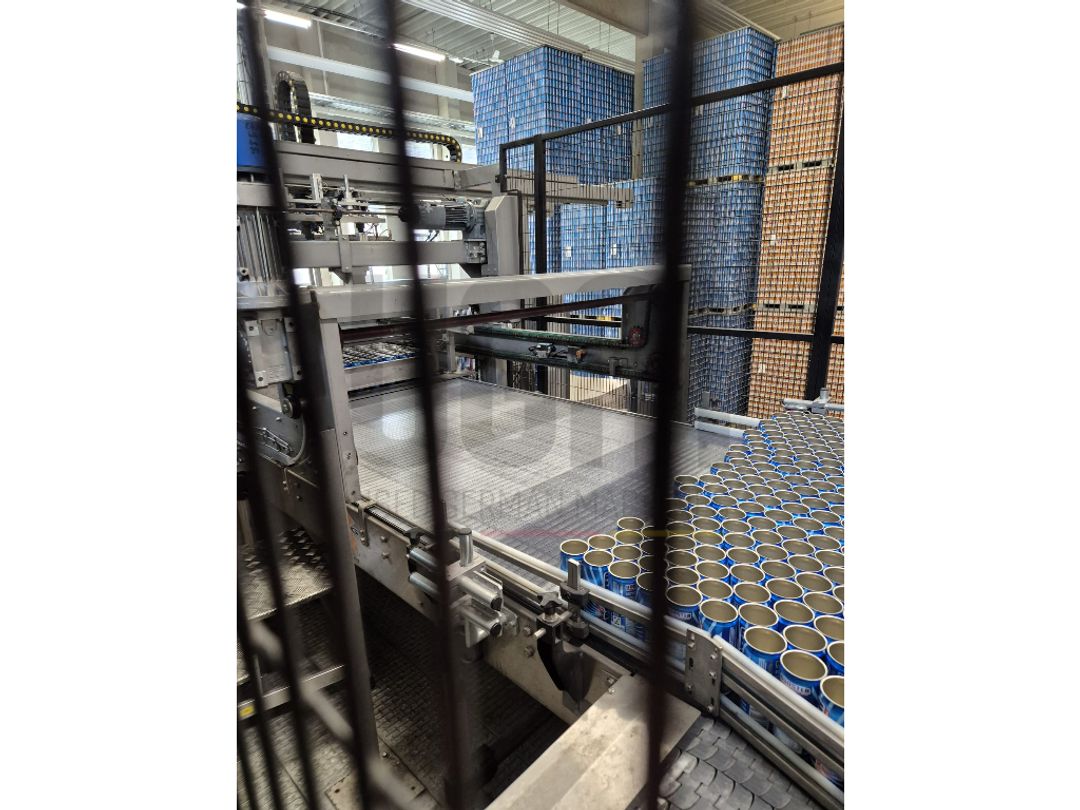

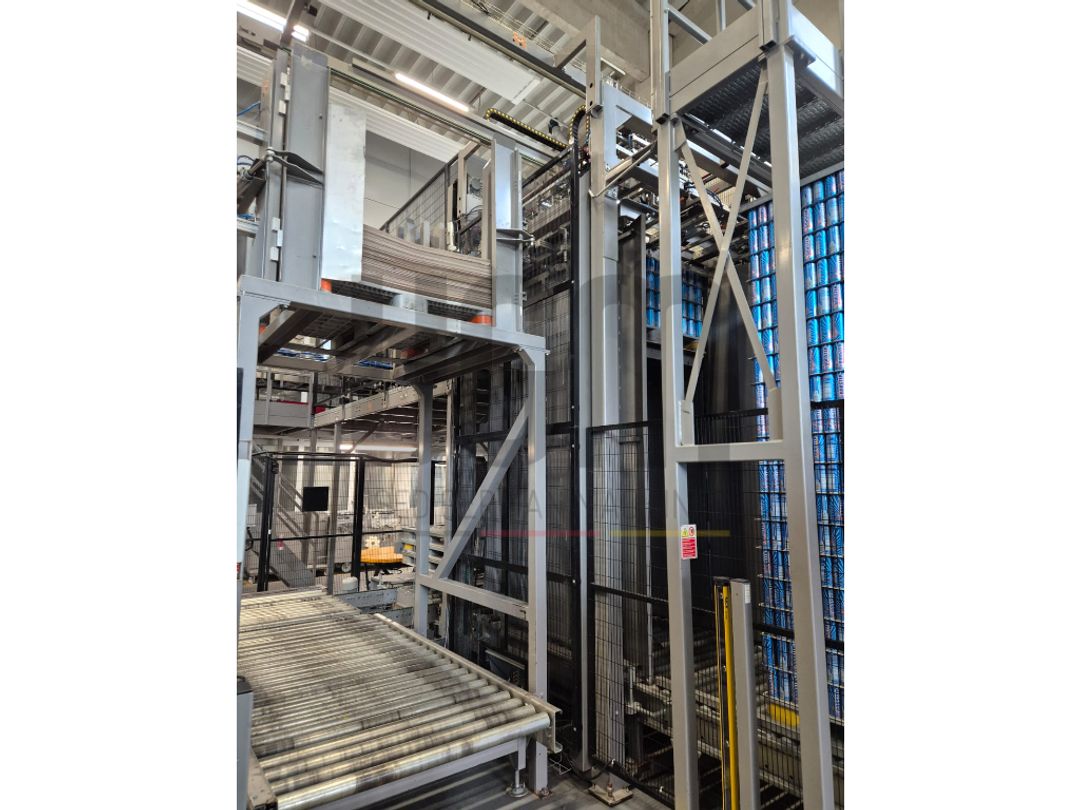

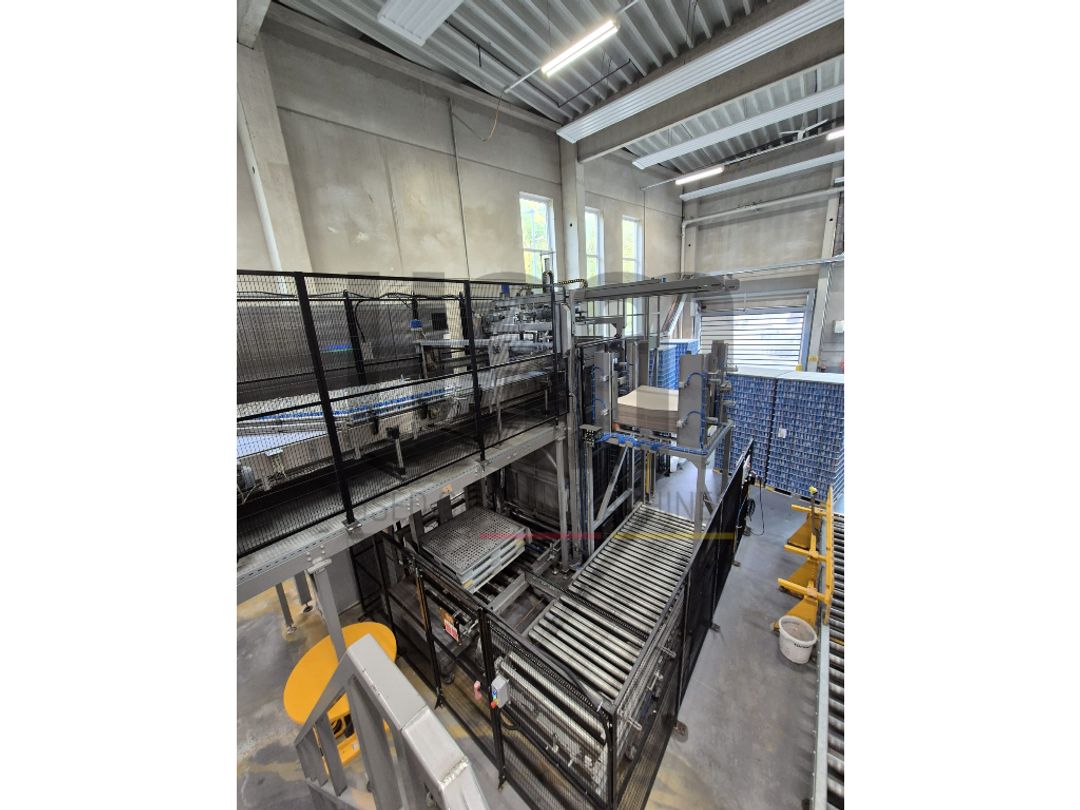

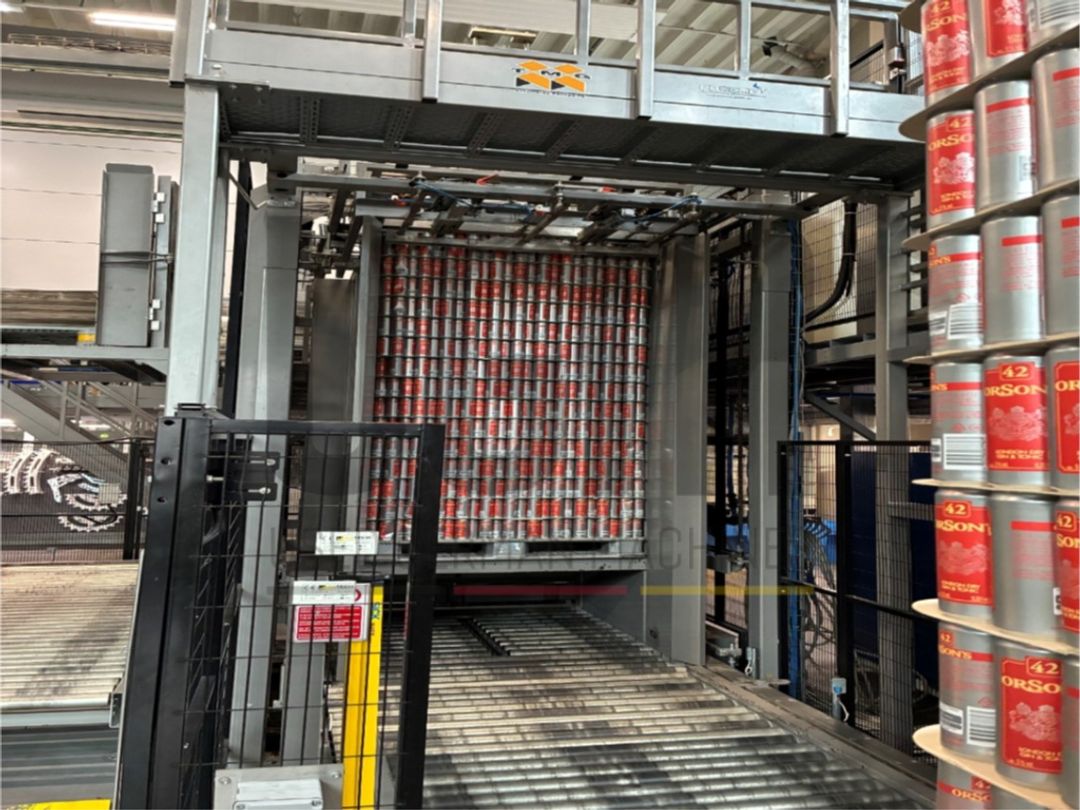

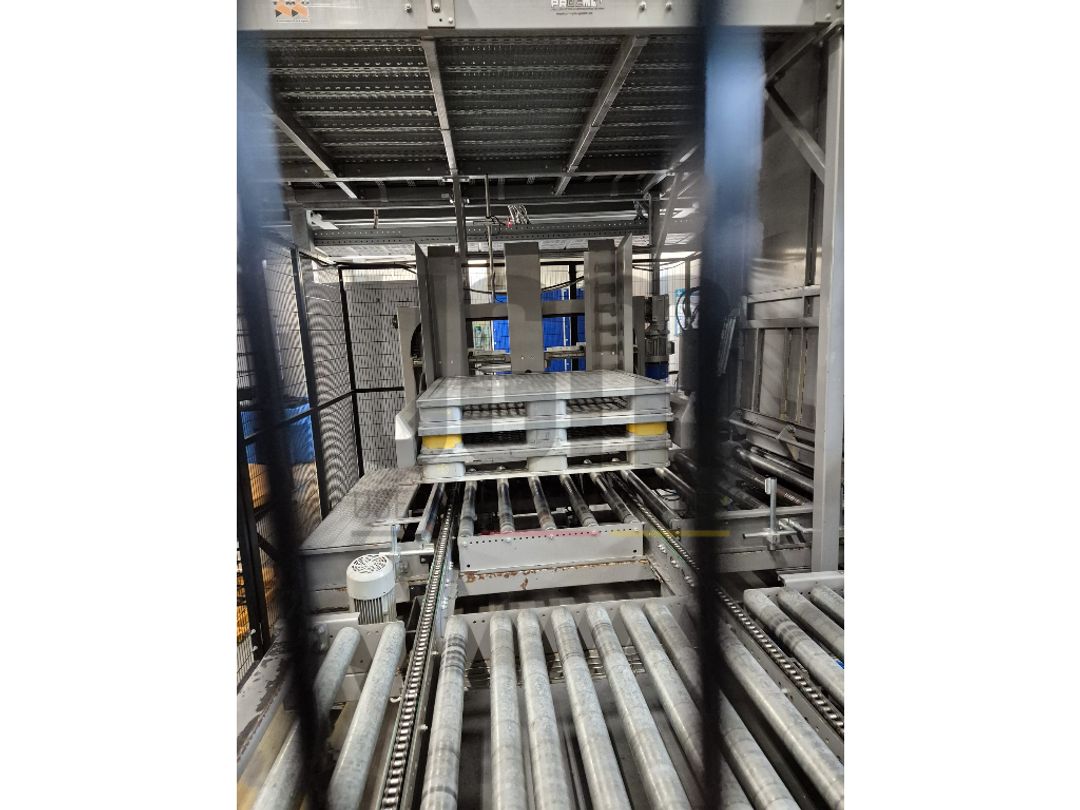

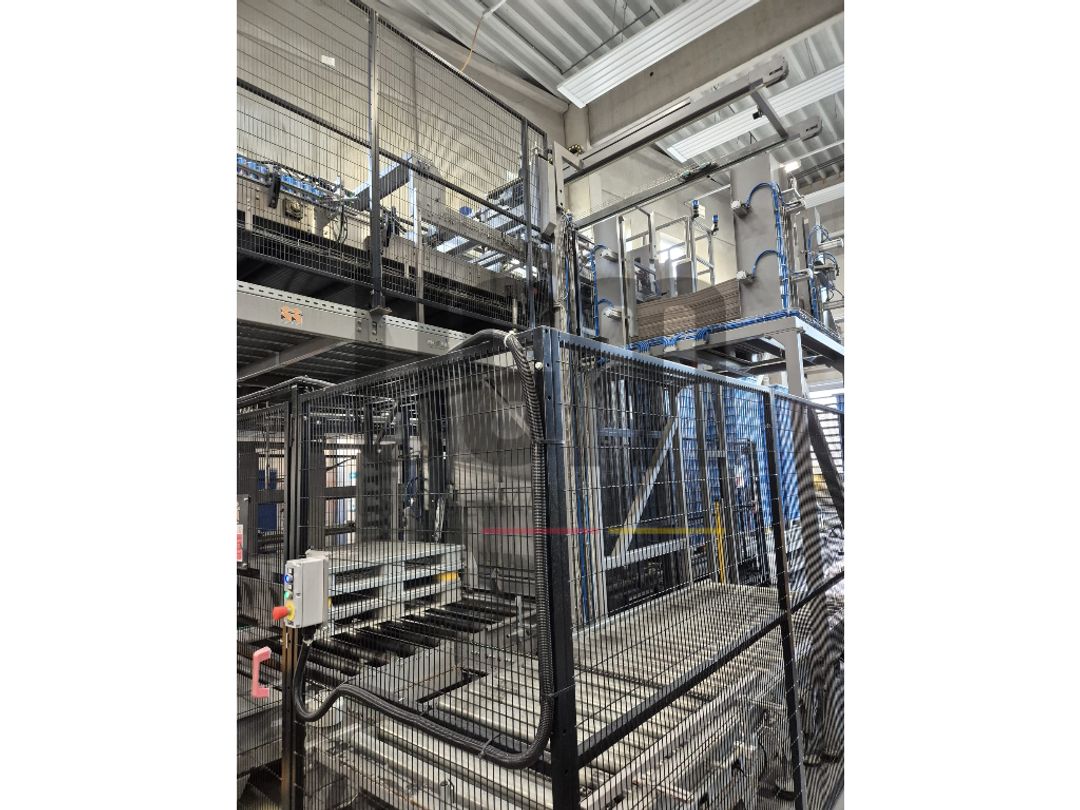

Can Depalletizer / Can De-Palletizing System

Manufacturer: TMG Impianti
Model: PalPaq Vega 120 B
Offer No.: DR-E 5589
Serial No.: 5.035.01.14
Year of manufacture: 2014
Condition: Good
Availability: Immediate
Documentation: Available

Performance & Capacity
Capacity: up to 50,000 cans per hour
Packaging type: Beverage cans
Application: High-speed canning lines

Technical Data
Installed power: 13.5 kW
Current consumption: 37.5 A
Compressed air pressure: min./max. 6–7 bar
Compressed air consumption: approx. 330 Nl/min
Machine weight: approx. 6,900 kg
Machine dimensions: according to layout

Suitable Can Formats

Classic:
330 ml – Ø 66.3 mm / H 115 mm (211 / 202)
500 ml – Ø 66.3 mm / H 168 mm (211 / 202)
568 ml – Ø 66.0 mm / H 177 mm (211 / 202)

Sleek:
330 ml – Ø 58.1 mm / H 145 mm (206.5 / 202)
355 ml – Ø 58.1 mm / H 157 mm (206.5 / 202)

Slim:
150 ml – Ø 53.3 mm / H 88 mm (202 / 200)
200 ml – Ø 53.3 mm / H 111 mm (202 / 200)
250 ml – Ø 53.3 mm / H 134 mm (202 / 200)

Key Features
High capacity up to 50,000 cans/hour
Wide format range (Classic, Sleek, Slim)
Robust industrial design
Immediate availability
Complete technical documentation included
