Complete SIDEL / KRONES PET Bottling Line – 0.5L & 1.5L – Capacity up to 25,200 bph

Main Components:

Preform Handling
Preform Tipper: Mudi MD 3, year 2000, manual loading, capacity 12,000 preforms

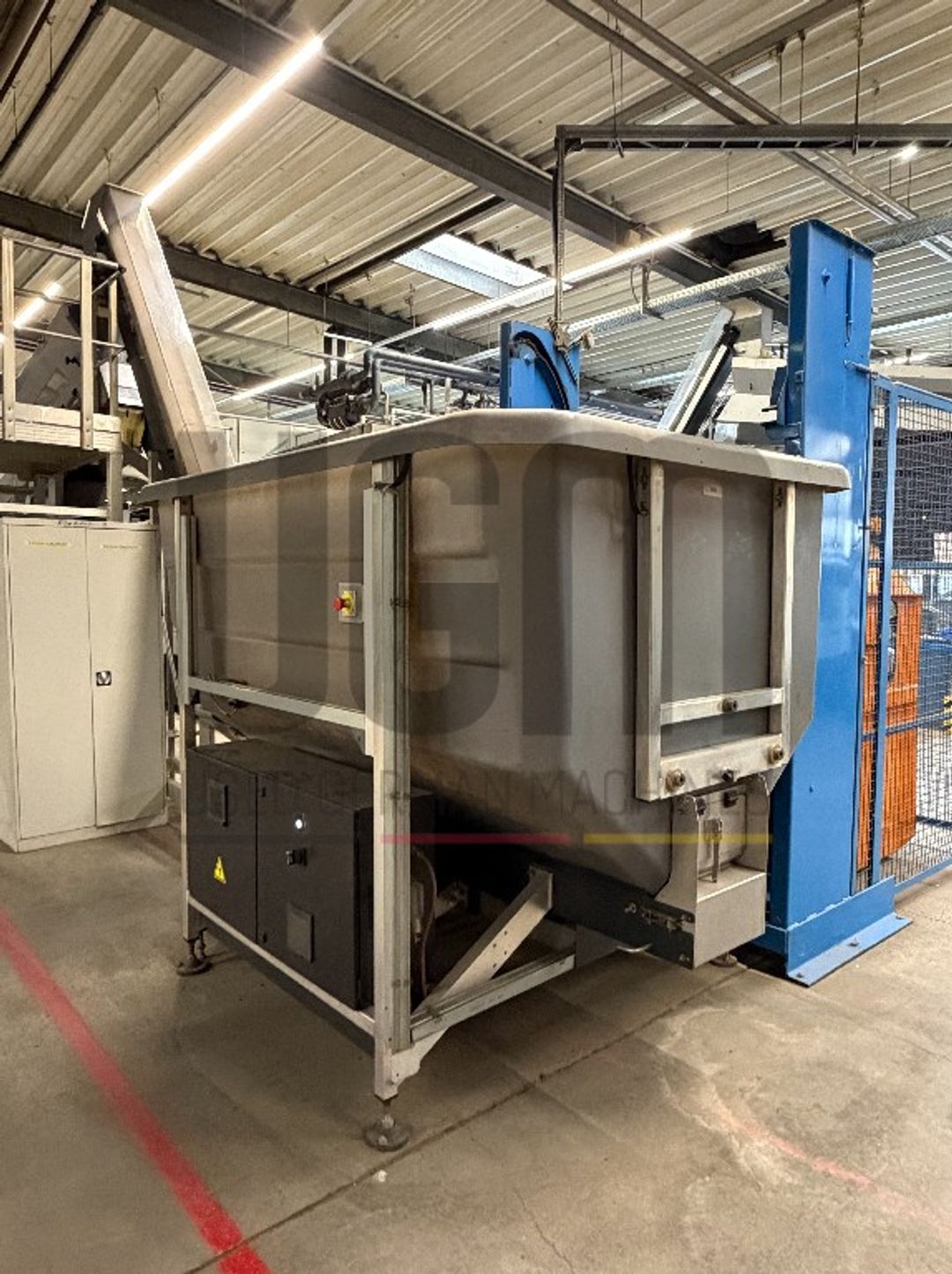

Preform Hopper: Sidel Funnel, year 2008, capacity 22,000 pcs (0.5L & 1.5L)
Preform Conveyor: Sidel, year 2008, capacity 12,000 pcs

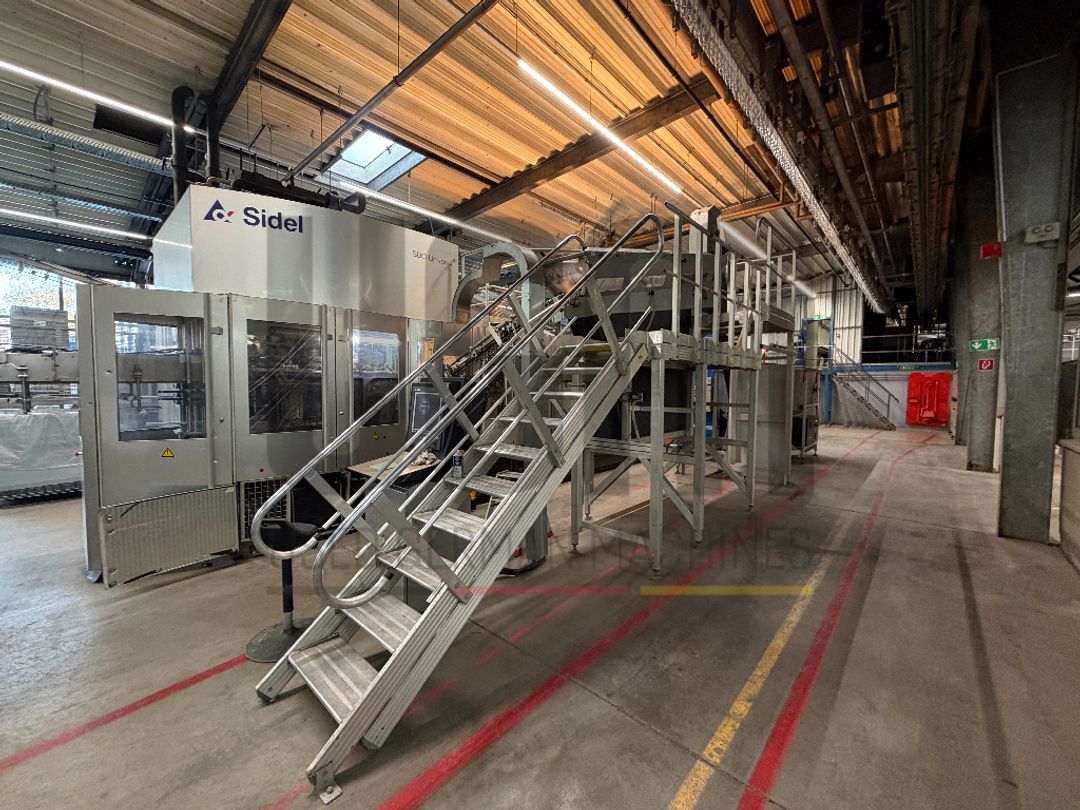

Blow Molder: Sidel SBO 14, year 2008, 25,200 bph (0.5L / 1.5L), air-cooled
Chiller: Trane RTAC 185, year 2003, central cooling
Air Conveyor: Krones, year 2000, automatic adjustment for different bottle sizes and materials
Mixing & Product Preparation

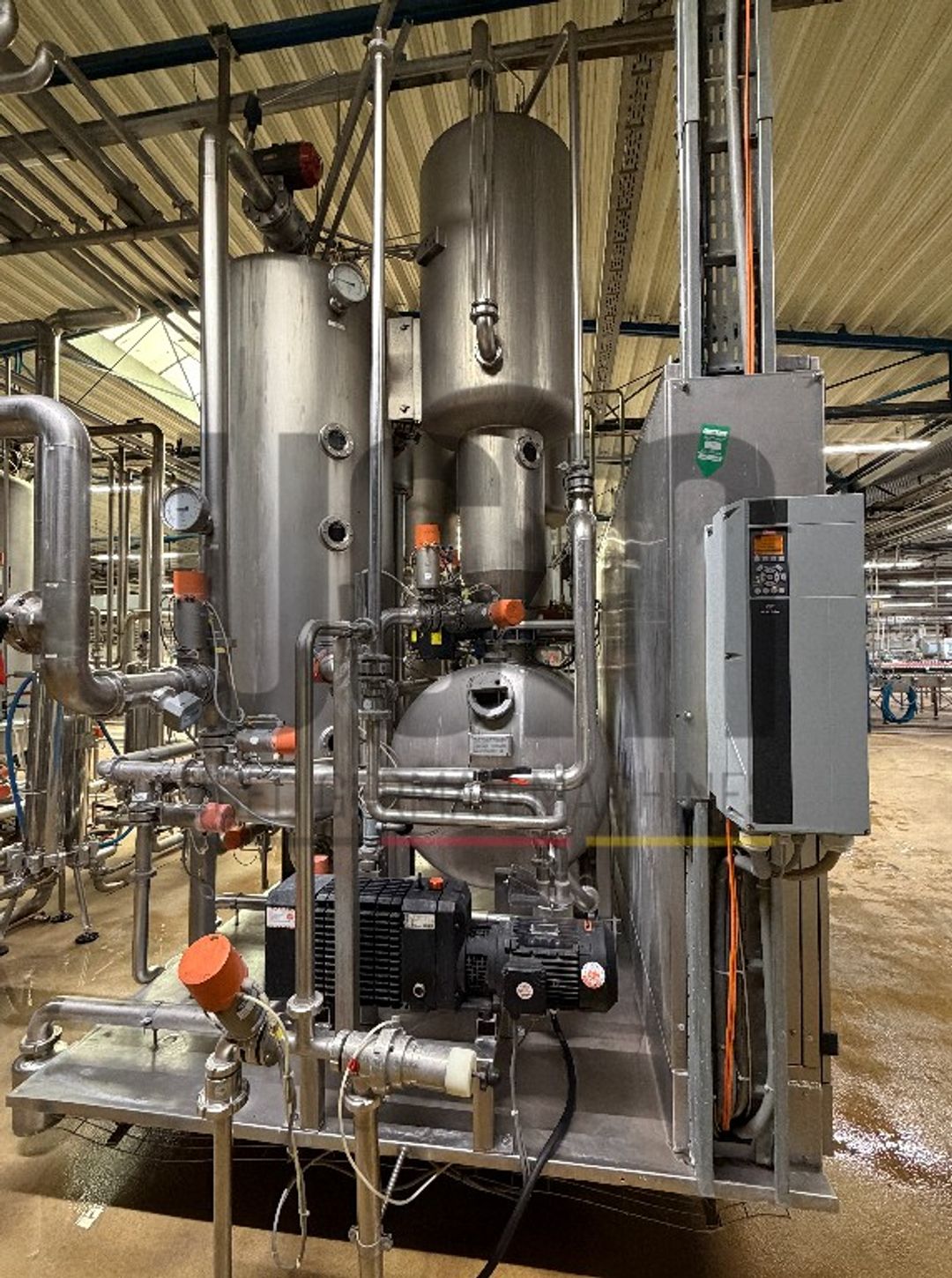

Mixer: Krones MS 45/2, year 1997, 45 m³/h
Flash Pasteurizer (KZE): Included
Nitrogen Dosing Unit: VBS
Filling and Capping

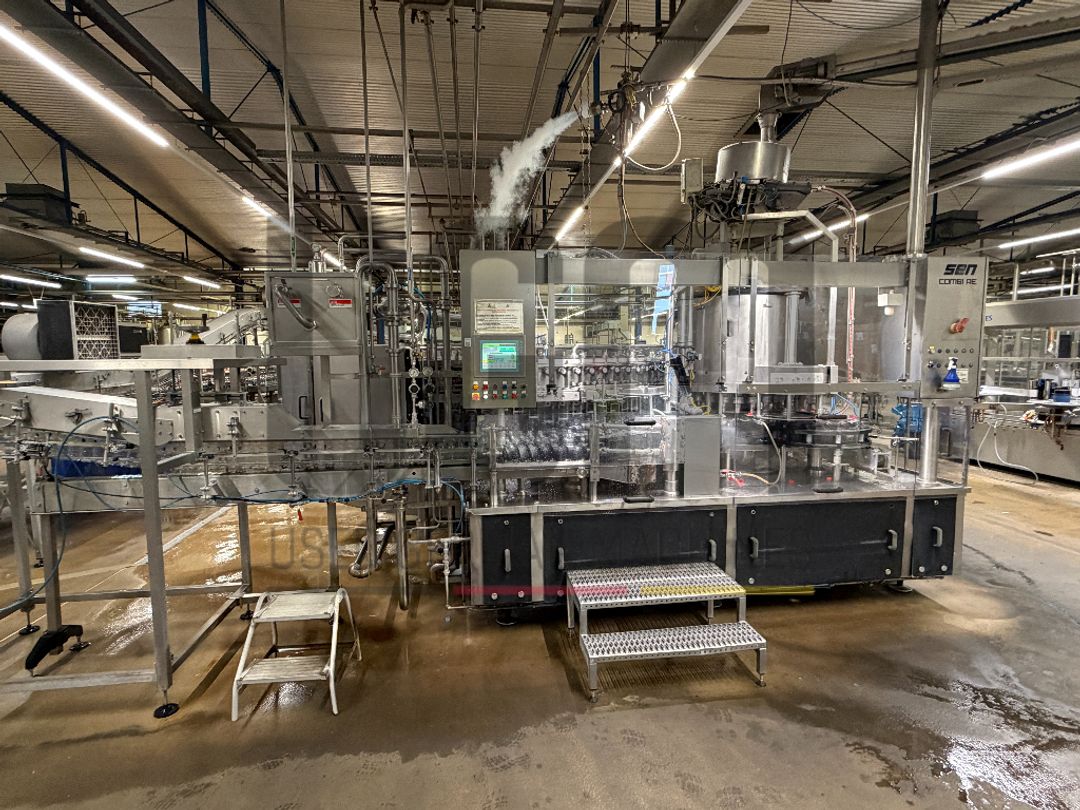

Filler: SEN Combi-RE, year 1991, counter-pressure filler with lifting cylinder, 19,900 bph
Cap Conveyor: Gassner, year 1997

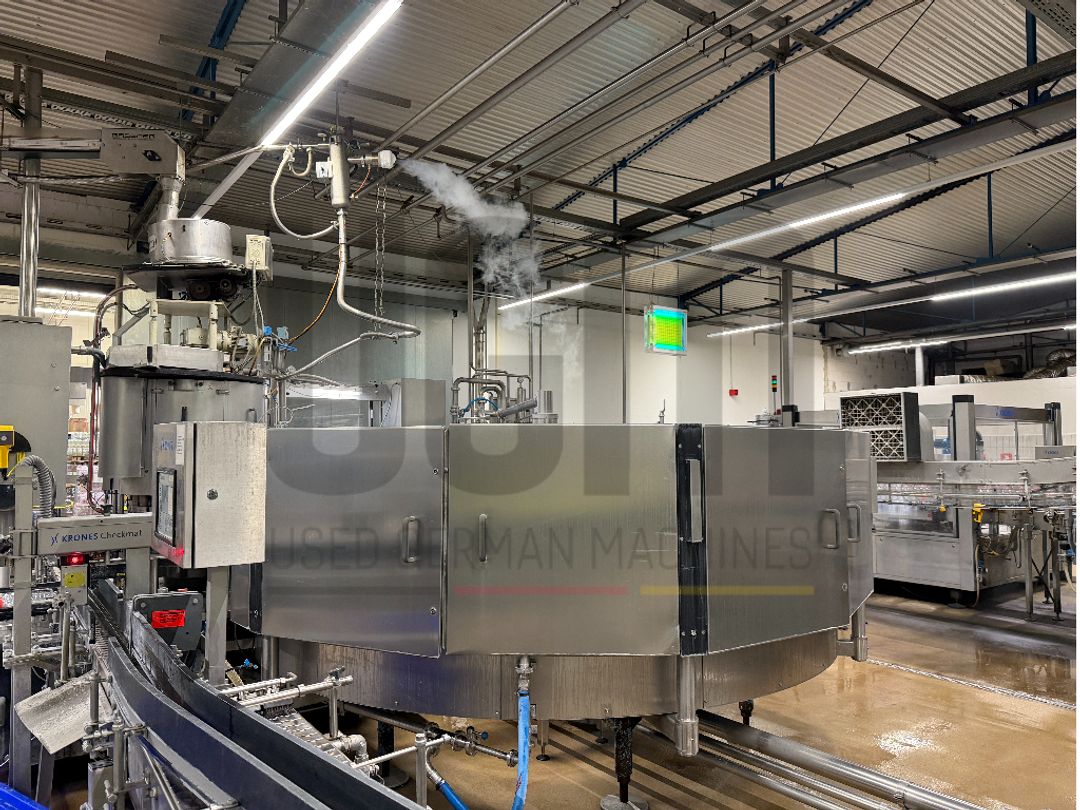

Capper: Zalkin, year 1991, 20 heads, magnetic capping heads, 19,900 bph

Inspection & Transport:

Bottle Inspectors:

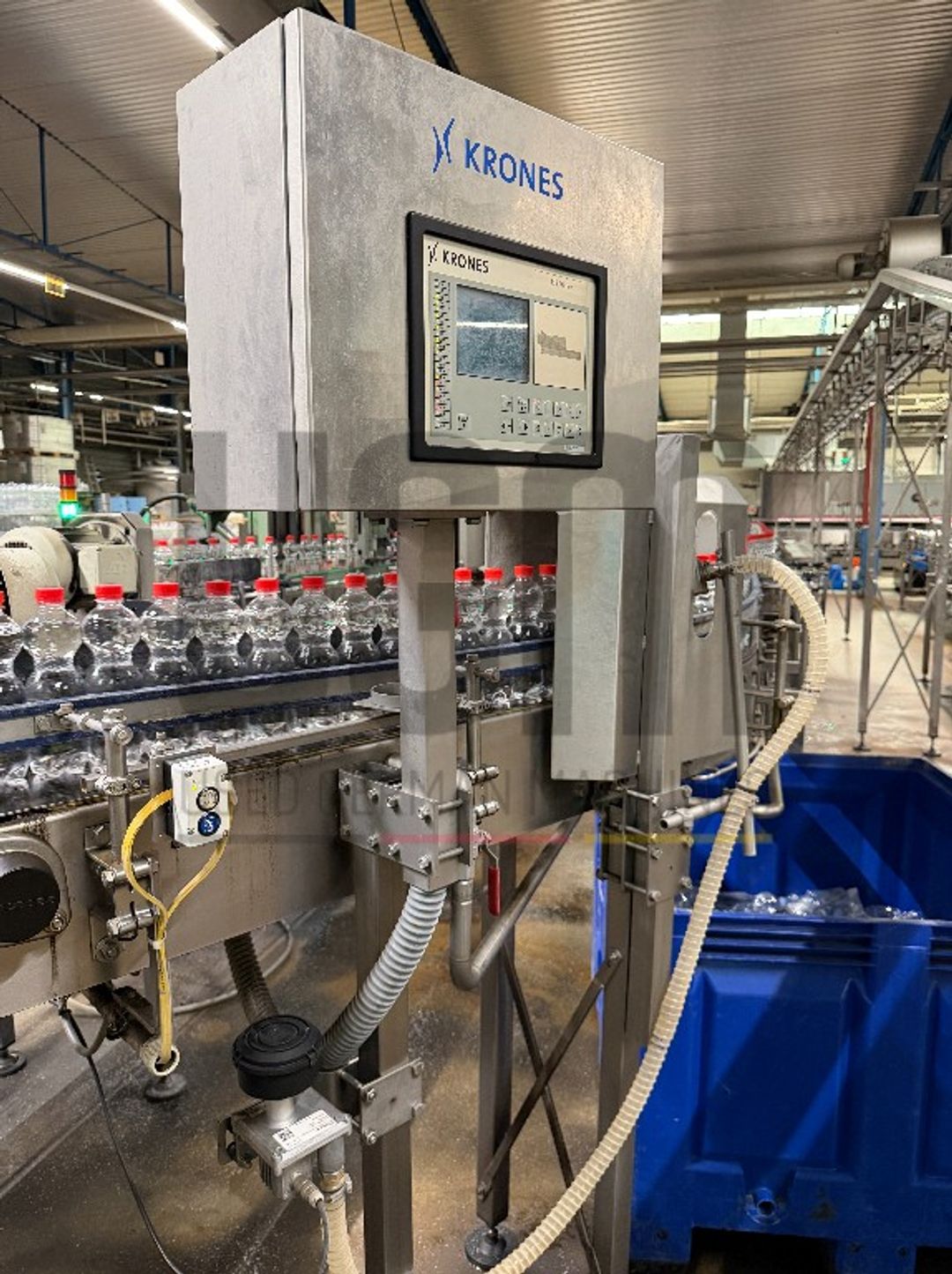

Krones Checkmat F-G (2000)
Krones Checkmat E (2000)

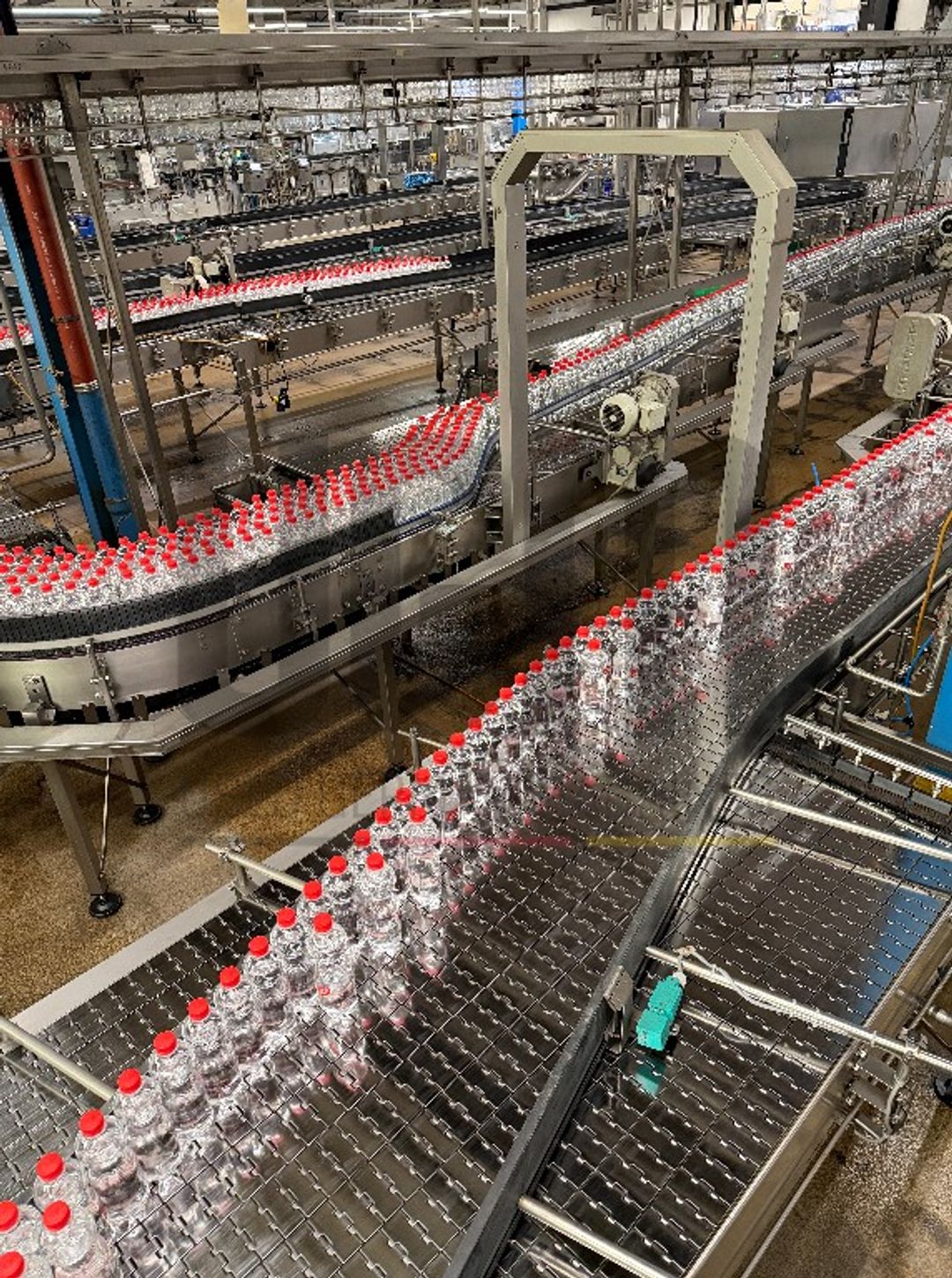

Bottle Conveyor: Krones (2000), full metal chain transport
Lubrication System: Löhrke (2008)

Labeling & Coding:

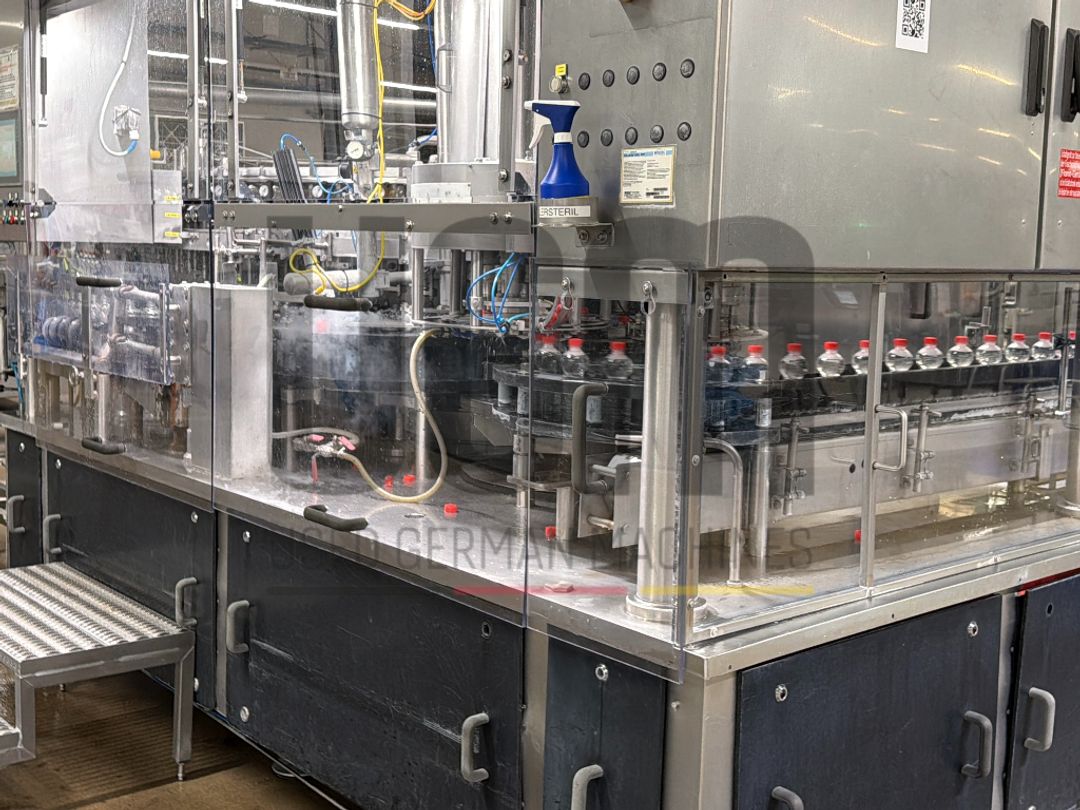

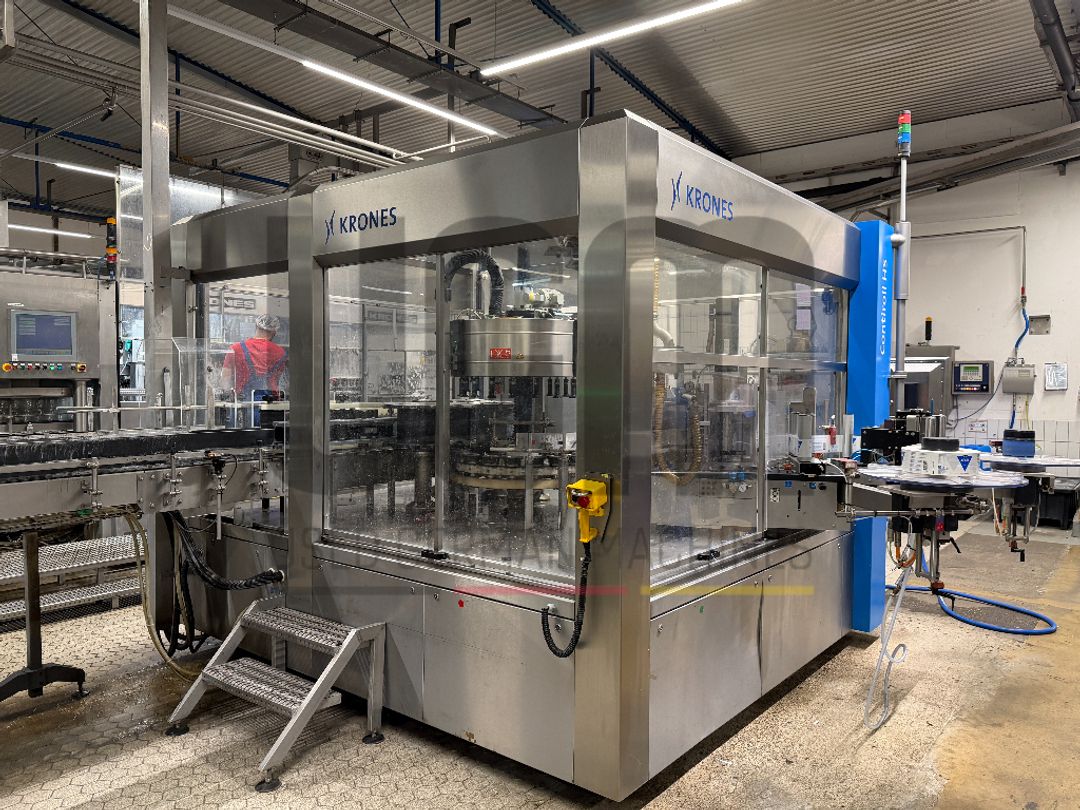

Labeler: Krones Contiroll, year 2000, 21,000 bph, height adjustment approx. 100 mm

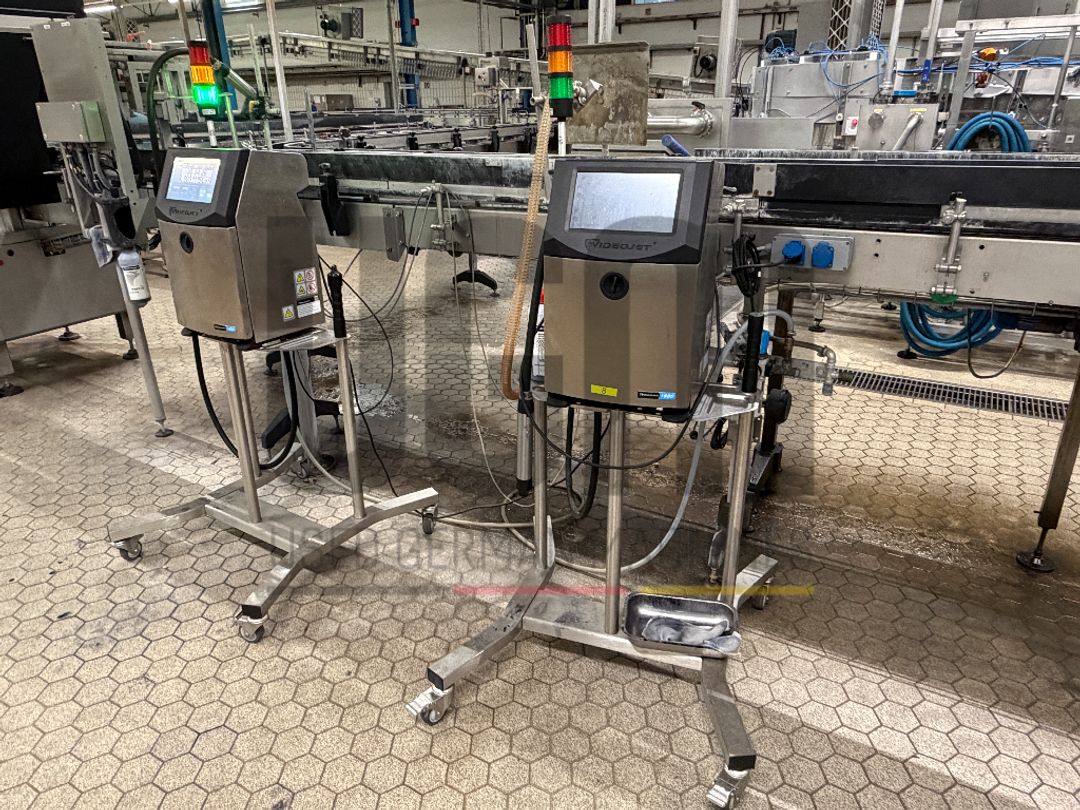

Bottle Coding: Videojet Excel 170i Ultra High Speed
Pack Coding: Blum (2005)

Shrink Packing

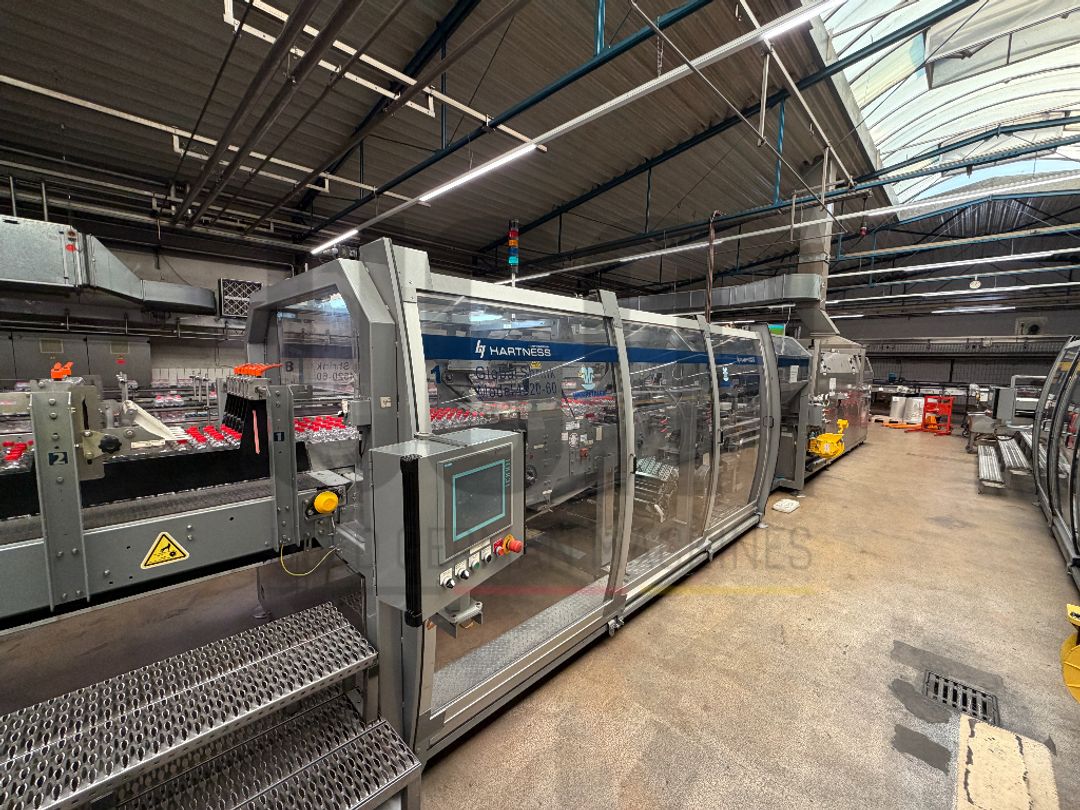

Shrink Packer: Hartness Multi-Packer 4520, year 2011, 60 cycles/min

Pack & Pallet Handling:
Handle Applicator: Project Progrip Z 100, year 2000, 70 cycles/min
Tray Packer: Not included
Empty Pallet Magazine: Krones LPMT, year 2000
Pallet Transport: Krones/Schäfer, year 2000, roller conveyor
Pallet Control: Krones LPKD, year 2000
Intermediate Sheet Inserter: Schäfer, year 2009
Top Sheet Applicator: Franpack Model 475, year 2000
Palletizer: Schäfer Multi ROB, year 2009, 24,000 bph
Wrapper: Franpack Model 125, year 2000, 100 pallets/hour

Technical Highlights:
Formats handled: 0.5L and 1.5L PET bottles
Output: 12000 to 25,200 bottles/hour
Fully automatic conveying and packaging system
Krones and Sidel integrated line control system
Suitable for CSD products (carbonated soft drinks)
Includes transport conveyors and electrical cabinets
